Collision Avoidance Game with Distance Sensor

It is collision avoidance game like Flappy Bird. You use your hands in this game, so you can control the bar intuitively (using distance sensor).

Materials

• obniz x1
• power supply for obniz x1
• GP2Y0A21YK0F(IR distance sensor) x1
• PC or Smartphone x1

Steps

Hardware

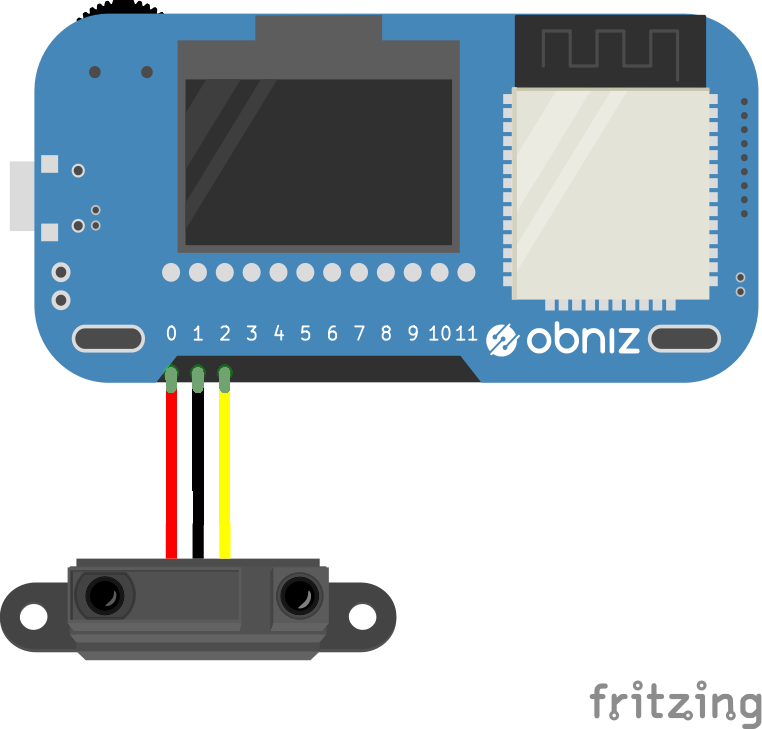

Connect IR distance sensor to an obniz like the table and the image below.

obniz	GP2Y0A21YK0F (IR distance sensor)
0	Vcc
1	GND
2	signal

software

Use HTML5 canvas.

<canvas id="field" width="300" height="300"/>

  let canvas = document.getElementById('field');
  let ctx = canvas.getContext('2d');

Set value of distance sensor to variable “inputHeight“, and make it usable anytime.

  let inputHeight = 0;
  let obniz = new Obniz("OBNIZ_ID_HERE");
  obniz.onconnect = async function () {
    let sensor = obniz.wired("GP2Y0A21YK0F", {vcc:0, gnd:1, signal:2});
    sensor.start(function (height) {
      inputHeight = height;
    })

  };

{vcc:0, gnd:1, signal:2} will be changed if you make different wiring from “Hardware“.

This values are used as input values each frames.

   let input = (300 - inputHeight);
   input = Math.min(Math.max(0, input), canvas.height);
   dot.push(input);

Program

<!-- HTML Example -->
<html>
<head>
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <script src="https://obniz.com/js/jquery-3.2.1.min.js"></script>
  <script src="https://unpkg.com/[email protected]/obniz.js" crossorigin="anonymous"></script>
</head>
<body>

<div id="obniz-debug"></div>

<canvas id="field" width="400" height="400"/>

<script>

  let canvas = document.getElementById('field');
  let ctx = canvas.getContext('2d');
  let dot = [];
  let bars = [];
  let inputHeight = 0;
  let frameCount = 0;
  let obniz = new Obniz("OBNIZ_ID_HERE");
  obniz.onconnect = async function () {
    let sensor = obniz.wired("GP2Y0A21YK0F",  {vcc:0, gnd:1, signal:2});
      let dataValues = [];
    sensor.start(function (height) {
      dataValues.push(height);
      if(dataValues.length > 5){
        dataValues.shift();
      }
      inputHeight = dataValues.reduce(function(x, y) { return x + y; })/dataValues.length;
    })


  };

  function initialize() {
    ctx.fillStyle = "black";
    ctx.fillRect(0, 0, canvas.width, canvas.height);

    ctx.fillStyle = "white";
    ctx.font = "25pt Arial";
    ctx.fillText("Click to START", 90, 200);


    canvas.addEventListener('click', startGame, false);
  }

  initialize();

  function startGame() {

    frameCount = 0;
    for (let i = 0; i < canvas.width / 4; i++) {
      dot[i] = undefined;
    }
    dot[dot.length] = canvas.height / 2;

    bars = [];

    frame();

  }

  function frame() {

    frameCount++;
    ctx.fillStyle = "black";
    ctx.fillRect(0, 0, canvas.width, canvas.height);

    let input = (500 - inputHeight);
    input = Math.min(Math.max(0, input), canvas.height);
    dot.push(input);
    dot.shift();

    for (let i = bars.length - 1; i >= 0; i--) {
      bars[i].x--;
      if (bars[i].x + bars[i].width < 0) {
        bars.splice(i, 1);
      }
    }
    if (frameCount === 100) {
      frameCount = 0;
      if (Math.random() > 0.3) {

        bars.push({x: canvas.width, y: Math.random() * 380 - 80, width: 16, height: 160});
      } else {
        let hole = Math.random() * 300;
        bars.push({x: canvas.width, y: 0, width: 16, height: hole - 40});
        bars.push({x: canvas.width, y: hole + 90, width: 16, height: canvas.height});
      }

    }


    drawDots();
    drawBars();
    if (isHit()) {
      gameOver();
    } else {
      setTimeout(frame, 10);
    }

  }

  function drawDots() {
    ctx.strokeStyle = "white";
    ctx.lineWidth = 3;
    ctx.beginPath();

    for (let i = 0; i < dot.length - 1; i++) {

      if (dot[i] !== undefined && dot[i + 1] !== undefined) {

        ctx.moveTo(i, dot[i]);
        ctx.lineTo(i + 1, dot[i + 1]);
      }
    }
    ctx.closePath();
    ctx.stroke();


  }

  function drawBars() {
    ctx.fillStyle = "red";
    ctx.beginPath();

    for (let i = 0; i < bars.length; i++) {

      ctx.fillRect(bars[i].x, bars[i].y, bars[i].width, bars[i].height);
    }

  }

  function isHit() {
    let x = dot.length;
    let y = dot[dot.length - 1];

    for (let i = 0; i < bars.length; i++) {
      if (bars[i].x <= x && x <= bars[i].x + bars[i].width
          && bars[i].y <= y && y <= bars[i].y + bars[i].height) {
        return true;
      }
    }
    return false;

  }

  function gameOver() {

    ctx.fillStyle = "white";
    ctx.font = "25pt Arial";
    ctx.fillText("GAME OVER", 100, 150);
    ctx.fillText("Click to START", 90, 250);

  }

</script>
</body>
</html>
